Mini Classic Drain/Pipe Inspection Camera with 20m/66ft ~ 40m/130ft cable
Mini Classic Drain/Pipe Inspection Camera with 20m/66ft ~ 40m/130ft cable

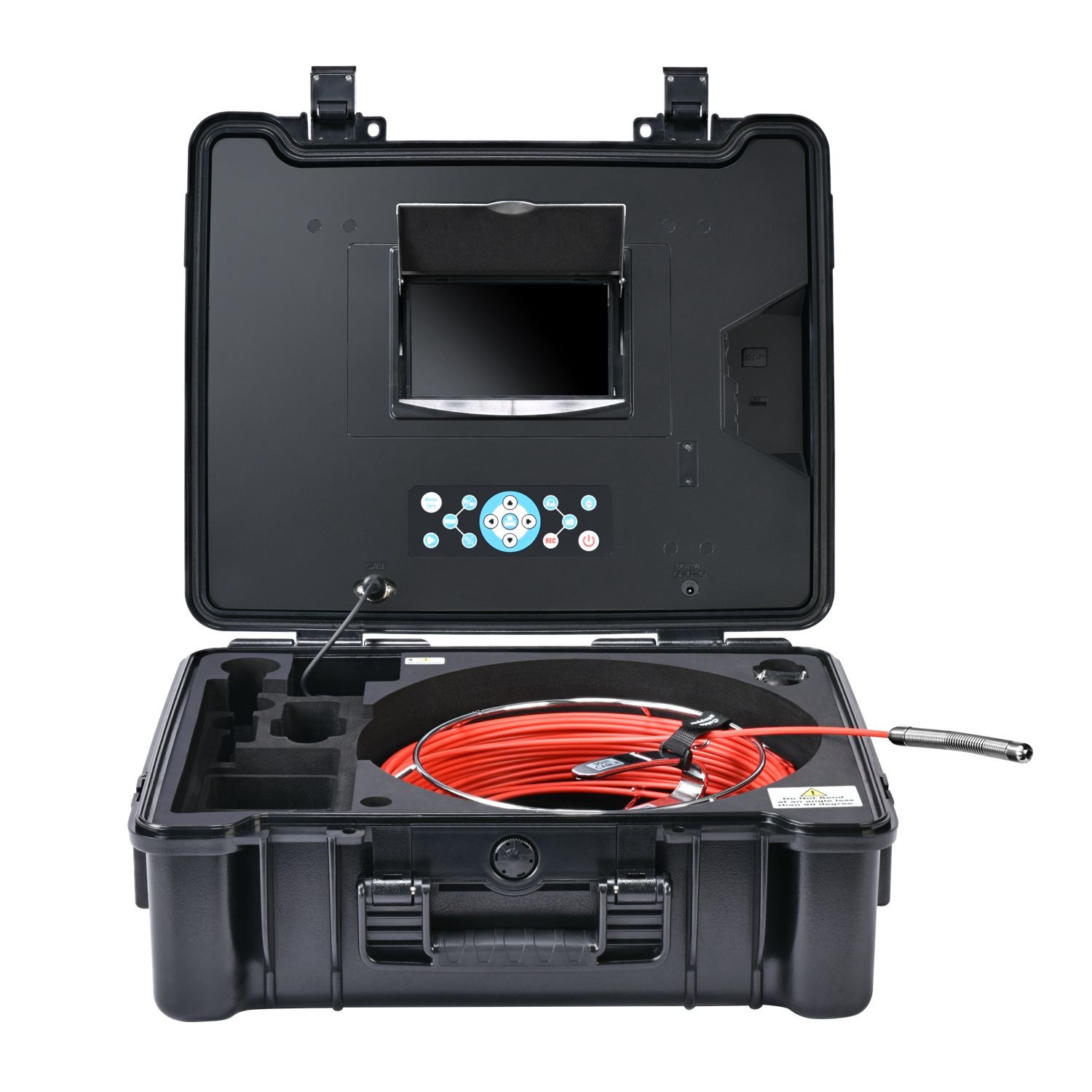

This is a Drain/Pipe Inspection Camera that comes with a mini 14mm camera head, a 7inch LCD monitor with DVR, a 20m cable reel that is rotatable itself in the case, a heavy duty case with all parts included, etc. It can be easily pushed into a 40mm pipe and pass through 4*90 degree bends.
It’s widely used in Pipeline, Drain, Sewer, Duct, Chimney, Machinery and Building Inspection
Key Features:
- 1/4" CMOS camera, 82° vision angle, 648H x 488V pixels
- Camera Size Φ14mm×125mm( Main body 14*20.5mm)
- Sapphire glass lens cover, 4 white LEDs
- Sapphire glass lens cover, 4 white LEDs
- Focus Distance 10cm (approx)
- Water proof level, 10m underwater (camera fix on cable)
- Push cable dia. 4.8mm
- 7” LCD color monitor
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- Video image rotate button
- With microphone for audio recording
- Rechargeable battery lasts up to 8 hours
- On-Screen date and time
- On-screen distance counter, Meter/feet
- 20m-40m fiberglass push rod
- Rotatable cable reel mounted in case for convenient operation
- Waterproof ABS suitcase with all parts included
Applications:
- For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
- For Maintenance of Plumbing and Wiring behind walls
What’s included?
- 1 x 14mm Camera head
- 1 x 20m-40m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 11kg
- Carton Measurement: 55 x 49 x 26cm
Specifications:
Camera Head
Camera Size: Φ14mm×125mm (Main body Φ14×125mm)
Camera Total Length: 125mm (include spring)
Sensor: 1/4" CMOS, 400 TV-Line
Pixel: 688H x 488V
View Angle: 82°
Focus Distance: 10cm (approx)
Depth-of-Field: 20cm(approx)
Front Lens: Sapphire glass
Water-Proof: 10m Under Water(Camera fix on Cable)
Shell Material: Stainless steel
Lighting: Built-in 4×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
20M-40M fiberglass rod cable with on-screen distance counter
Dia. of push cable: 4.8mm
Material of cable: Fiberglass covered by PP
Operation: Mounted and rotatable in the case
LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480
Audio Recording: local sound record
Output: video output
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 6600mAh Rechargeable Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 8 hours
Tool Box
Size: 517 x 434 x 200mm (LxWxH)
Box Color: Black or Yellow (selectable)
