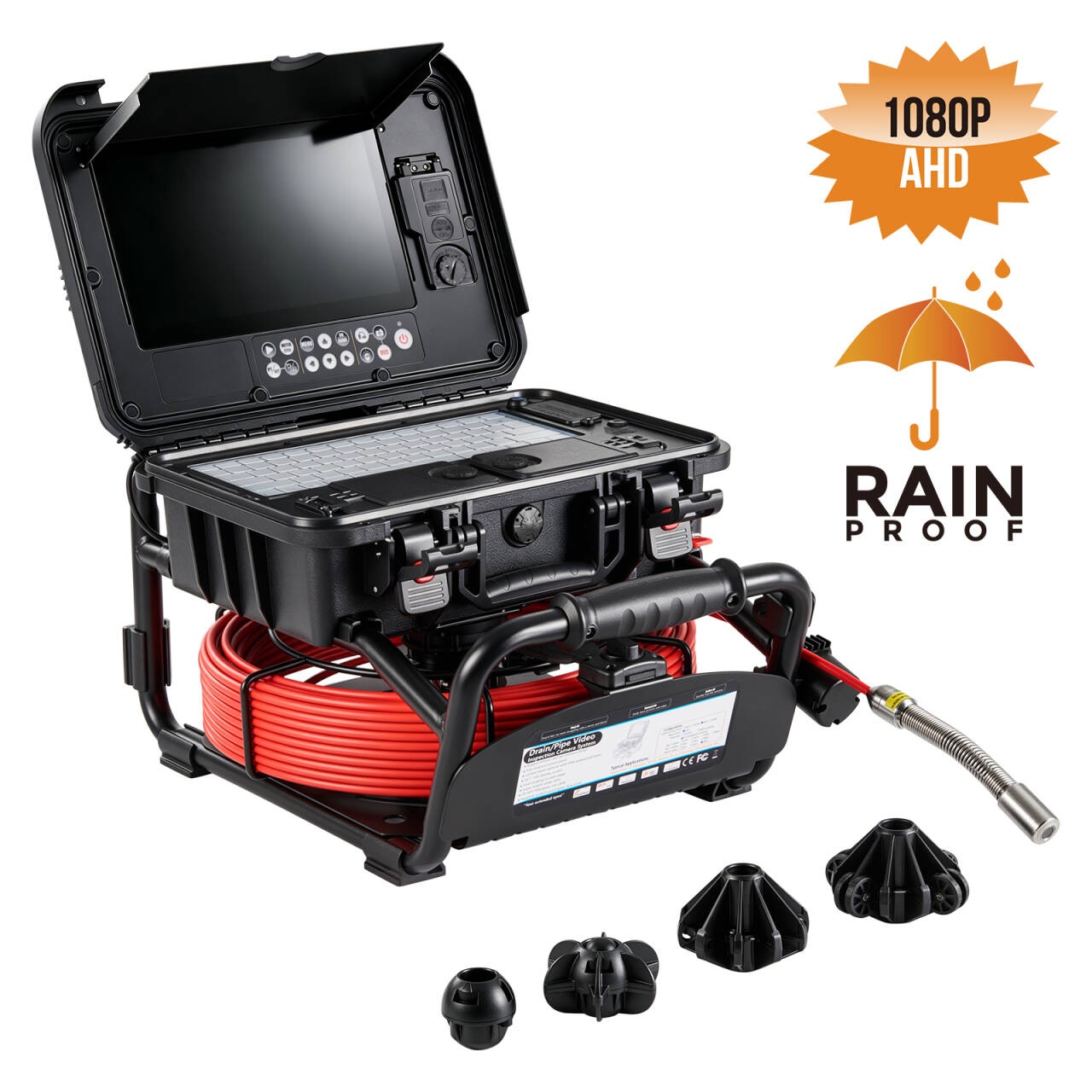

Fully Rainproof Industrial Video Drain/Pipe Inspection Camera
3599 Prodcut video link: https://youtu.be/MtacR0Z--ok
- Unique, professional and compact design.
- 1/3 inch CMOS, 130° wide vision angle
- 1080P Full HD Stainless steel camera head, IP68 waterproof level
- Sapphire glass lens cover, 15 high light white LEDs
- Diameter of camera: 23 mm
- Four plastic guides for camera head, Φ46mm 80mm 86mm & 100mm
- 10'' LCD color monitor, with image rotate button
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- With microphone for local audio recording
- Rechargeable battery lasts up to 6 hours
- On-Screen date and time
- 20, 30 or 40m fiberglass φ6.8mm push rod
- The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
- Ability to go through 90°bends in Φ45mm pipes
- With smart braking system
- With on-screen distance counter
- With Keyboard for text input (English)
- Whole system waterproof (box closed), whole system rain-proof even when box is open.
- 1 x 23mm Camera head
- 1 x 20/30/40m cable wheel
- 4 x Plastic guides(dia.100mm, 86mm, 80mm and 46mm)
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x connection cable
- 1 x Screws and camera head waterproof seal
- 1 x waterproof control box with monitor mounted
- Built-in 512hz sonde
- Self-leveling function
- 33khz transmitter
- 23mm camera head
Camera Head
- Camera Size: Φ23mm×51mm
- Camera Total Length: 155mm
- Sensor: 1/3" CMOS
- Resolution: AHD 1920*1080
- View Angle: 130°
- Focus Distance: 15cm (approx)
- Depth-of-Field: 20cm(approx)
- Front Lens: Sapphire glass
- Water-Proof: 20m Under Water(Camera fix on Cable)
- Shell Material: #304 stainless steel
- Lighting: Built-in 15×LED(White)
- Operating Temperature: -10~50℃/+14~+122℉
- Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
- 20/30/40M fiberglass rod cable
- Dia. of push cable: 6.8mm
- Material of cable: Fiberglass covered by PP
- With smart braking system
LCD Monitor
- Screen: 10-inch 16:9 Super bright HD color LCD screen with rain-proof design
- Resolution: 1024x600 pixels
- Mirror and Flip: support image mirror, and flip
- Video Resolution: AHD 1080P / CVBS D1
- Video Encoding: H.264
- Audio Recording: local sound record
- Output: TV and Audio output
- On-screen date and time
- On-screen meter/ft. distance display(optional)
- External memory: support SD memory card up to 64GB
- Language: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish
Battery Supply
- Power Supply: DC 12V input
- Battery Capacity: 7.2V 6400mAh Li-on Battery
- Power Output: 6-12V DC, USB 5V
- Work/Charge time: 6/8 hours
